35 Ton Dry Bulk Trailer For Sale

Description

What is a dry bulk trailer?

Panda Mech dry bulk trailer is suitable for carrying bulk cement, coal ash, lime powder, mineral powder, sand, fly ash and other powder material with a particle diameter of no more than 0.1mm.

Dry bulk trailer is mainly used in cement factories, cement warehouses, and large construction sites. Bulk trailer carriers will not only reduce the loss rate of cement power material but also improve the loading and unloading efficiency.

Panda Mech cement bulker capacity: 28-120 ton, bulk feed trailer volume: 22-100cbm.



Dry bulk tank

The dry bulk tank has several hoppers at the bottom tank. There are openings (“or manholes”) on the top and back of the tank. There is a valve at the bottom of each hopper. This valve passes through the dry bulk trailer below. In the extended pipeline, these valves are closed when the powder material is transported to the bulk trailer. When we need to unload the goods, the driver will open them, let them flow out of the hopper into the pipeline.

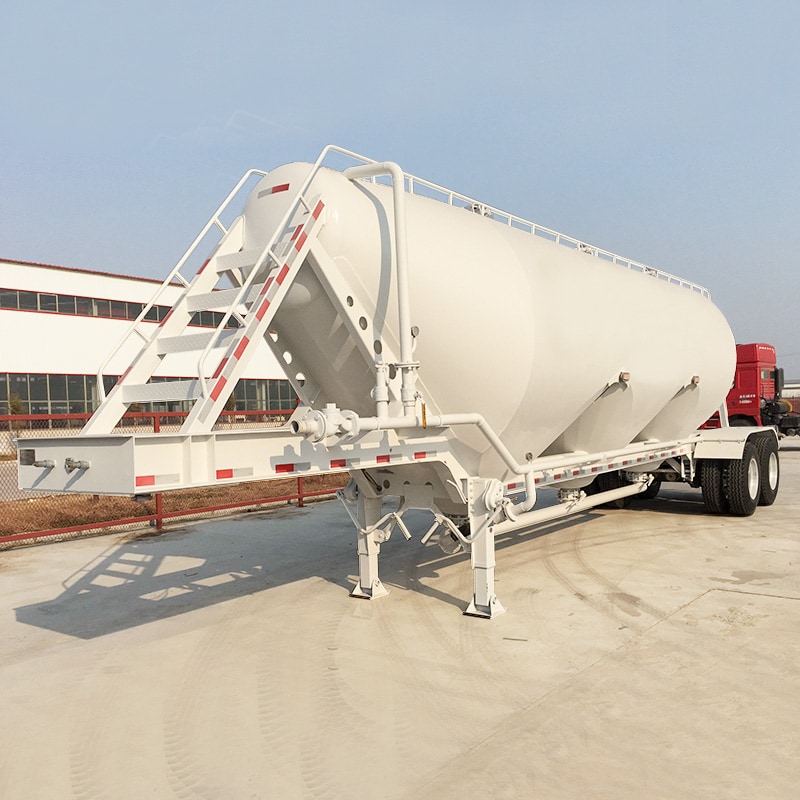

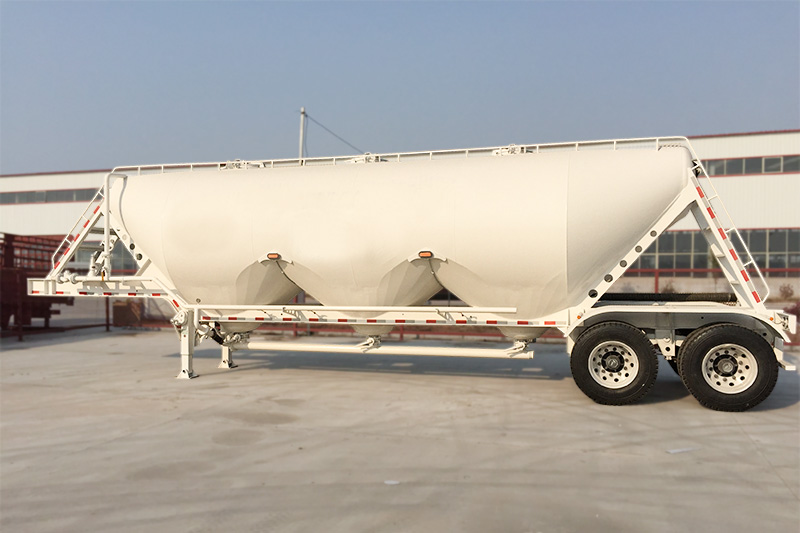

Dry bulk tanker trailer images

Dry bulk trailer specification

This is the specification of the dry bulk blower trailer. We supply 28-120 ton cement bulk trailers for sale.

Brand	Panda Mech pneumatic dry bulk carrier trailer
Length	9.5-12.5 meter
Dry bulk trailer capacity	28-120 ton
Dry bulk trailer weight	5.8 ton (±3%)
Dry bulk trailer dimensions	(7500-11500)*2500*3600-4200mm
Tanker Body Material	Steel or aluminum
Diesel Engine	WEICHAI 4100/4102 Brand
Compressor	BOHAI, FUDA  10m3/12 m3or other brands
Manhole Cover	Carbon steel or Aluminum 500mm(Diameter)
Discharging Valve	Diameter is 3 or 4 inch
Main Beams	Welded design, High Strength Steel
Axle	1 to 4 sets, 13,16,20 ton axles, BPW or SAF
Landing Gear	JOST 28T
Suspension	Mechanical suspension or Air suspension
Braking System	T100/100 chamber, WABCO emergency valve
Bulk trailer tire	12R22.5, 385/65R22.5, 13R22.5, 12.00R24, 315/80R22.5
Dry bulk trailer parts	pneumatic handrail, famous brand engine, axle, silo pneumatic bulk trailer light, tire, shot blasting, prime anti-rust painting, bulk trailer wire, valves, release valve, Inner air bag, landing gear, water spray device, side guard and toolbox, manhole cover, fenders, dry bulk trailer blower, bulk trailer tubs



Dry bulk truck trailer parts

Air compressor:

By burning diesel oil, the air is compressed and then pumped into the tank through a pipe.

Exhaust volume: 6-16m3/min

Working speed: 900/950/1000 r/min

More about air compressor

Pipeline:

The gas is effectively guided to complete soot blowing and unloading of powder materials

Check valve:

One, when compressing the air into the cement tank, prevent the air from flowing back through the pipe.

Safety valve:

When using an air compressor, because the air needs to be pumped into the tank, the pressure in the cement tank is likely to be too high. When the pressure is too high, the safety valve will automatically exhaust.

Discharge valve:

Through the connection of the hose and the discharge valve, the powder and granular materials are unloaded to the simple warehouse and other places.

Blow assist valve:

During unloading, sometimes, it may happen that the powdery material cannot be unloaded in the pipeline. At this time, a blow assist valve is required to complete the unloading.

External air source:

Because some dry bulk semi trailers do not have an air compressor, we can use an external air source when unloading to complete the unloading.

Pressure gauge:

Through the pressure gauge, we can see the pressure inside the tank to better complete the unloading.

Axle:

2-5 axle, choose according to national laws and regulations and your own needs.

Leaf spring:

Leaf springs are commonly used in wheeled vehicle suspensions and are called semi-elliptical springs.

Lifting ears:

The lifting lugs support the leaf spring

Toolbox:

In use, many things need to be stored and can be put in the toolbox.

light:

Located around the bulk cement tanker, it serves as a warning indicator.



Why you can choose Panda?

Panda offers 100+ dry bulk trailer products. About 95% of these are general industrial equipment.

A wide variety of cement bulker options are available to you, such as paid samples.

Dry bulk trailer supplier has exported to more than 60 countries,

Dry bulk trailers are most popular in Southeast Asia, Africa, and South America. You can pass the ISO9001 certificate to ensure the quality of the dry bulk tanker.



Understanding Panda

Panda Mechanical Co., Ltd approved by the ministry of industry and information technology of China to produce kinds of a semitrailer and commercial vehicles.

Panda has first-class manufacturing machines and kinds of testing equipment, introduce international advanced technology and research with famous truck manufacture to improve design strength. Each vehicle produced by skillful and experienced workers, pass 120 item QC inspections, supply perfect products to the world. More…
